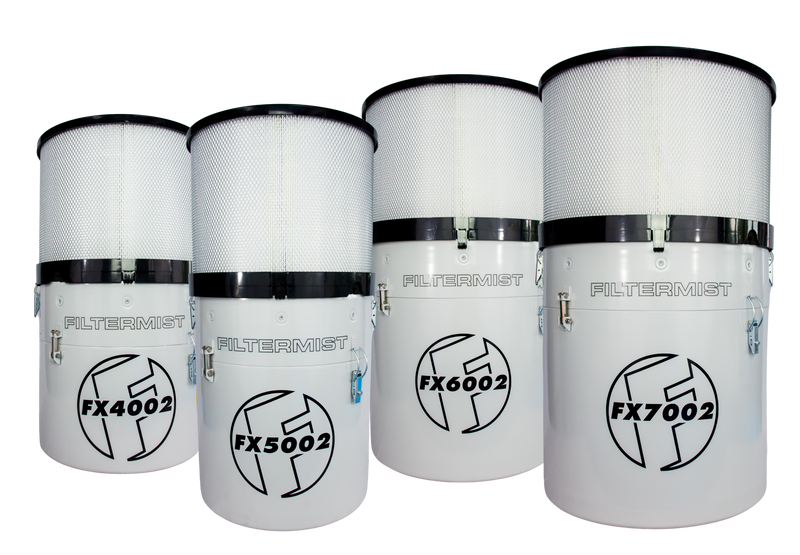

Filtermist FX Series oil mist collectors – lineup of FX4002, FX5002, FX6002, and FX7002 models for CNC mist extraction
Filtermist FX4002 oil mist collector installed on CNC machines in a South African production facility
Filtermist FX Series mounting options for CNC mist extraction systems
Filtermist FX5002 oil mist collector – compact CNC mist extraction unit, South Africa

Filtermist FX Series

Compact oil mist collectors 1250 m3/hr – 2750 m3/hr
Filtermist oil mist collectors efficiently remove oil and coolant mist, fume and steam in thousands of manufacturing operations around the world.
There are currently more than 190,000 units operating in over 60 countries worldwide, making Filtermist the world leader in metalworking pollution control.
Expertly manufactured in the UK, all units come with a 5 year warranty as standard.

Contact a Vertech team member for expert advice on choosing the right filtration system for your needs



Compact and Lightweight

Filtermist oil mist filters are known for their compact and lightweight design. This allows for easy installation in a variety of settings and helps to minimise the impact on the overall operation and footprint of the machinery or equipment. Additionally, the compact design of Filtermist filters can help to reduce the cost of installation and maintenance, making them a cost-effective solution for removing oil mist and other contaminants from the air.

Easy To Install

Filtermist oil mist filters are designed to be easy to install due to their simple mounting system. This makes them suitable for a wide range of applications and allows for quick and straightforward installation in a variety of settings.

Flexible Mounting Options

The compact nature of Filtermist oil mist collectors means they can be directly mounted to the machine tool, or positioned using a variety of stands or brackets manufactured by Filtermist’s in-house fabrication team. Mounting options include:
  • Direct Mounting
  • Floor Stands
  • Wall Brackets
  • Machine Tool Brackets
  • Low Level Stand
  • Horizontal Inlet Plenum

Tech Data

FX Series GA Drawing
Model Airflowm3/hr Motor 1 Amm Bmm Cmm Dmm Emm Fmm Gmm Hmm Weightkg Noise 2dBA
FX4002 1250 @ 50Hz
1500 @ 60Hz		 1.1kW 50Hz
200v, 220v, 380v, 400v		 1.1kW 60Hz
200v, 220v, 230v, 440v, 460v, 480v		 357 532 35 148 309 398 682.50 375 23 70
FX5002 1675 @ 50Hz
2000 @ 60Hz		 1.5kW 50Hz
200v, 220v, 380v, 400v		 1.5kW 60Hz
200v, 220v, 230v, 440v, 460v, 480v		 357 613 35 198 378 398 751.50 375 27.5 71
FX6002 2000 @ 50Hz
2400 @ 60Hz		 2.2kW 50Hz
200v, 220v, 380v, 400v		 2.2kW 60Hz
220v, 230v, 440v, 460v, 480v		 438 642 35 198 432 485 805.50 456 37 73
FX7002 2750 @ 50Hz 2.2kW 50Hz
200v, 220v, 380v, 400v		 not available 438 642 35 198 432 485 805.50 456 37 73
  • 1Motors to be used on specified voltages only.
  • 2Results are in test conditions ± 3% tolerance. Local variations and in use conditions may affect readings.

How Filtermist Oil Mist Collectors Work
