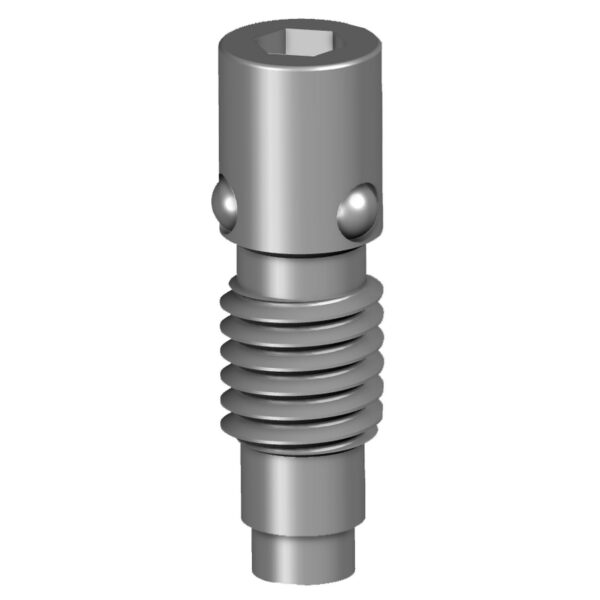

The Mitee-Bite Loc-Down® System was designed to be a programmer’s and operator’s dream for quickly and easily securing small to large aerospace parts. Its compact design allows for tighter pattern on grid plates compared to other options in the marketplace saving material cost on expensive aerospace alloys.
The Loc-Down® generates high holding force and provides low profile “out of the way” clamping allowing programmers to be very creative. Permits aggressive machining without tooling interference or apply forces that would influence part, intended to streamline production for the Aerospace Industry.
- Ideal for grid plates, tombstones and custom applications
- 100% Heat Treated Stainless Steel
| Description | Part No. | Thread Size |
Bushing Part No. |
Cutter Part No. |
Loc-Down® Quick Change Kit* Part No. |
||
|---|---|---|---|---|---|---|---|
| METRIC | Loc-Down® Clamp | 11610 | CAD | M10-1.5 | 11524 | 11531 | |
| Loc-Down® Clamp | 11612 | CAD | M12-1.75 | 11520 | 11530 | 11650 | |
| Loc-Down® Clamp | 11616 | CAD | M16-2.0 | 11528 | 11530 |
| Description | Part No. | |
|---|---|---|
| Loc-Down® Carbide Cutter M12 & M16 | 11530 | CAD |
| Loc-Down® Carbide Cutter M10 | 11531 | CAD |
| Loc-Down® Insertion Tool | 11535 | CAD |
| Heavy Wall Loc-Down® Bushing – 3/8 (M10) | 11524 | CAD |
| Heavy Wall Loc-Down® Bushing – 1/2-13 (M12) | 11520 | CAD |
| Heavy Wall Loc-Down® Bushing – 5/8-11 (M16) | 11528 | CAD |
Never use an impact style driver when tightening or loosening.
Hand tightening for majority of applications is sufficient – Maximum torque 15 Ft-lbs. (20 N.m)
*Kit includes 4 Loc-Downs, 4 custom bushings, insertion tool,
4 liners, 1 diamond and tapered pin with mounting screws.
Mitee-Bite has combined the Loc-Down®, custom Bushings
and Locating Pins and Liners in a convenient kit (that
delivers a low-cost high precision quick change pallet
system with a repeatability of .0004″/0.01mm or better!
