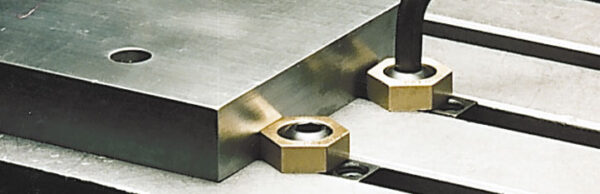

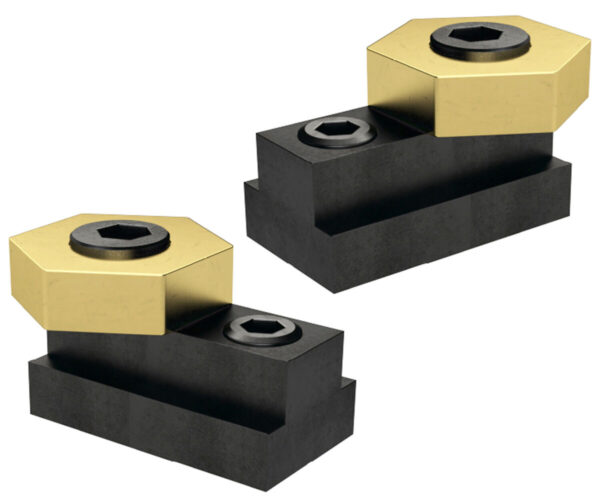

The original MITEE-BITE T-Slot Clamp combines Mitee-Bite’s unique cam action clamping element with a T-nut.
Locks in machine T-slot for low profile clamping.
Makes fast set-ups possible right on the machine table.
Brass hex follows contour of unusual shaped parts.
Packaged in pairs or complete kits.
Hex key not included.
Metric
| Part Number |
T-Slot Size |
Number of Clamps Per Pack |
Torque (N.m.) |
Holding Force (N.) |
|
|---|---|---|---|---|---|
| 50422 | CAD | 8mm | 2 | 8.50 | 3558 |
| 50424 | CAD | 10mm | 2 | 8.50 | 3558 |
| 50426 | CAD | 12mm | 2 | 11.30 | 3355 |
| 50428 | CAD | 14mm | 2 | 28.00 | 8900 |
| 50430 | CAD | 16mm | 2 | 61.00 | 13340 |
| 50432 | CAD | 18mm | 2 | 61.00 | 13340 |
| 50434 | CAD | 20mm | 2 | 135.00 | 26700 |
| 50436 | CAD | 22mm | 2 | 135.00 | 26700 |
