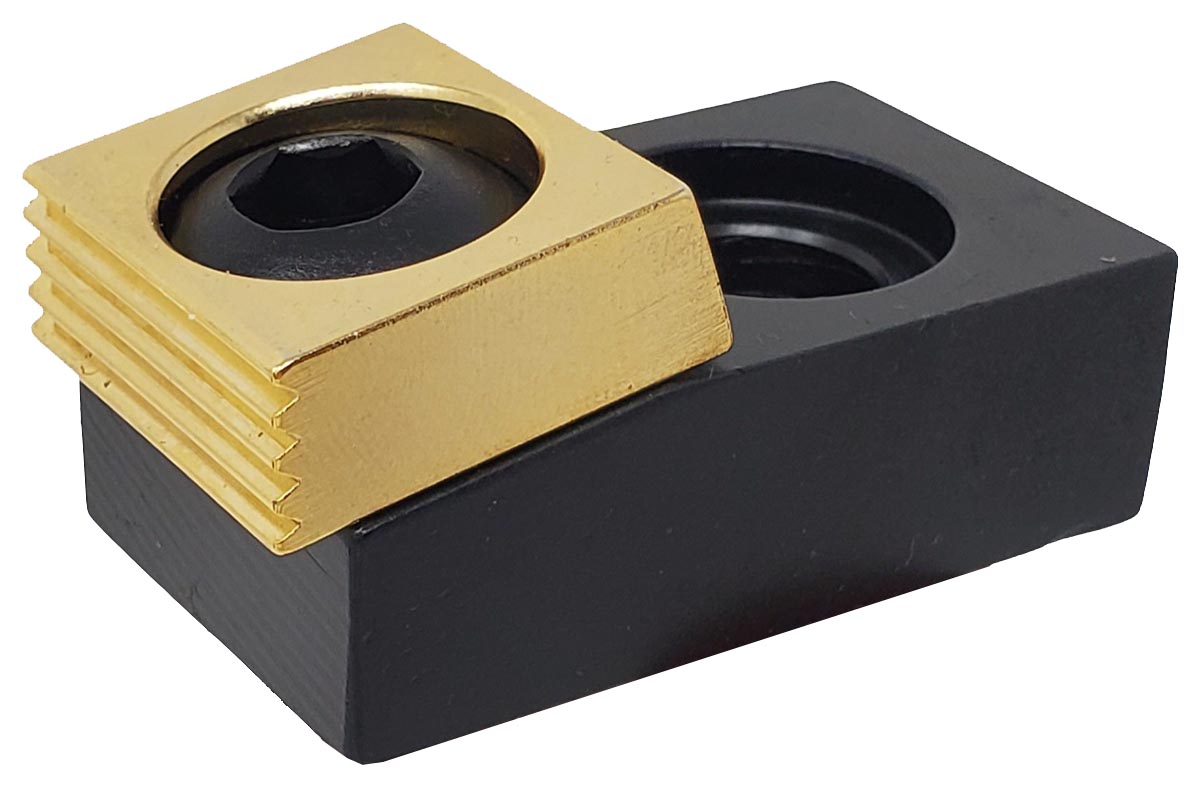

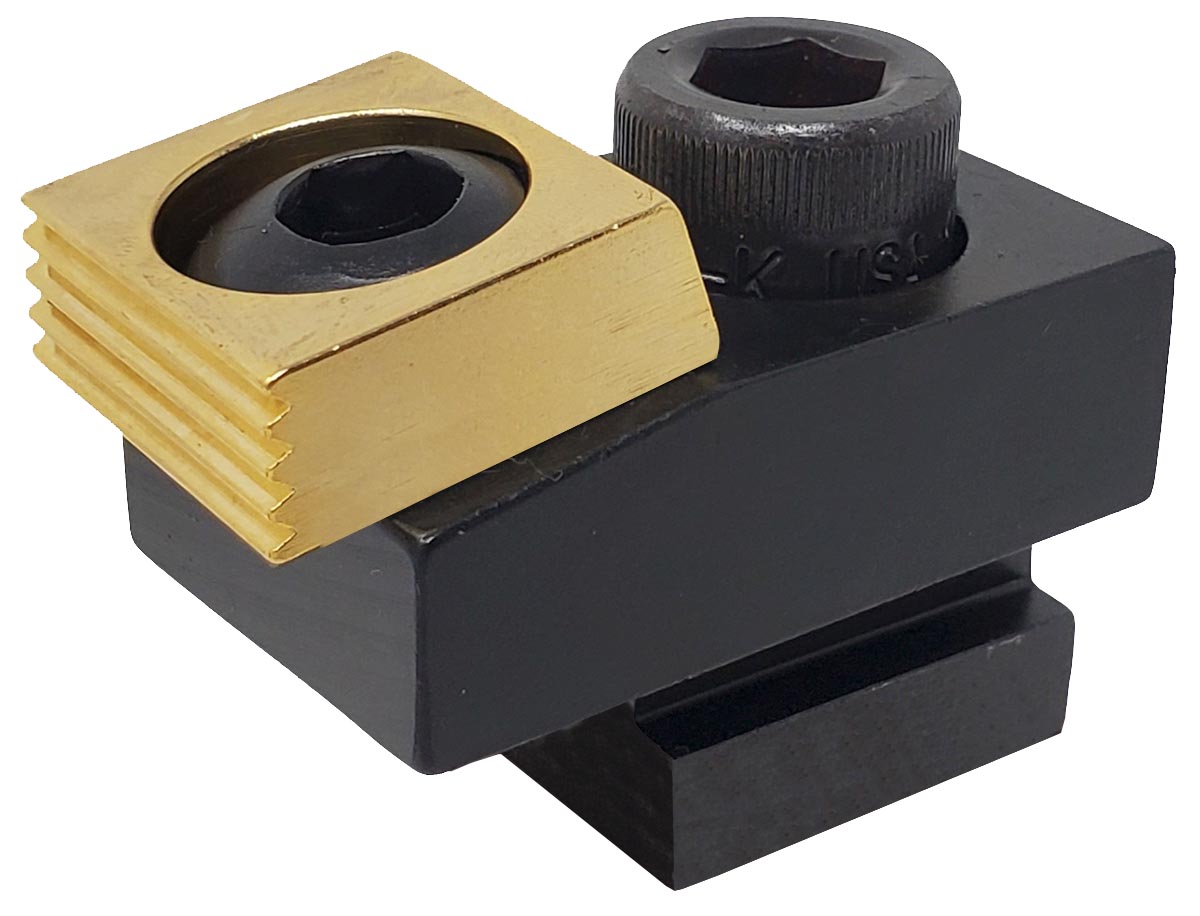

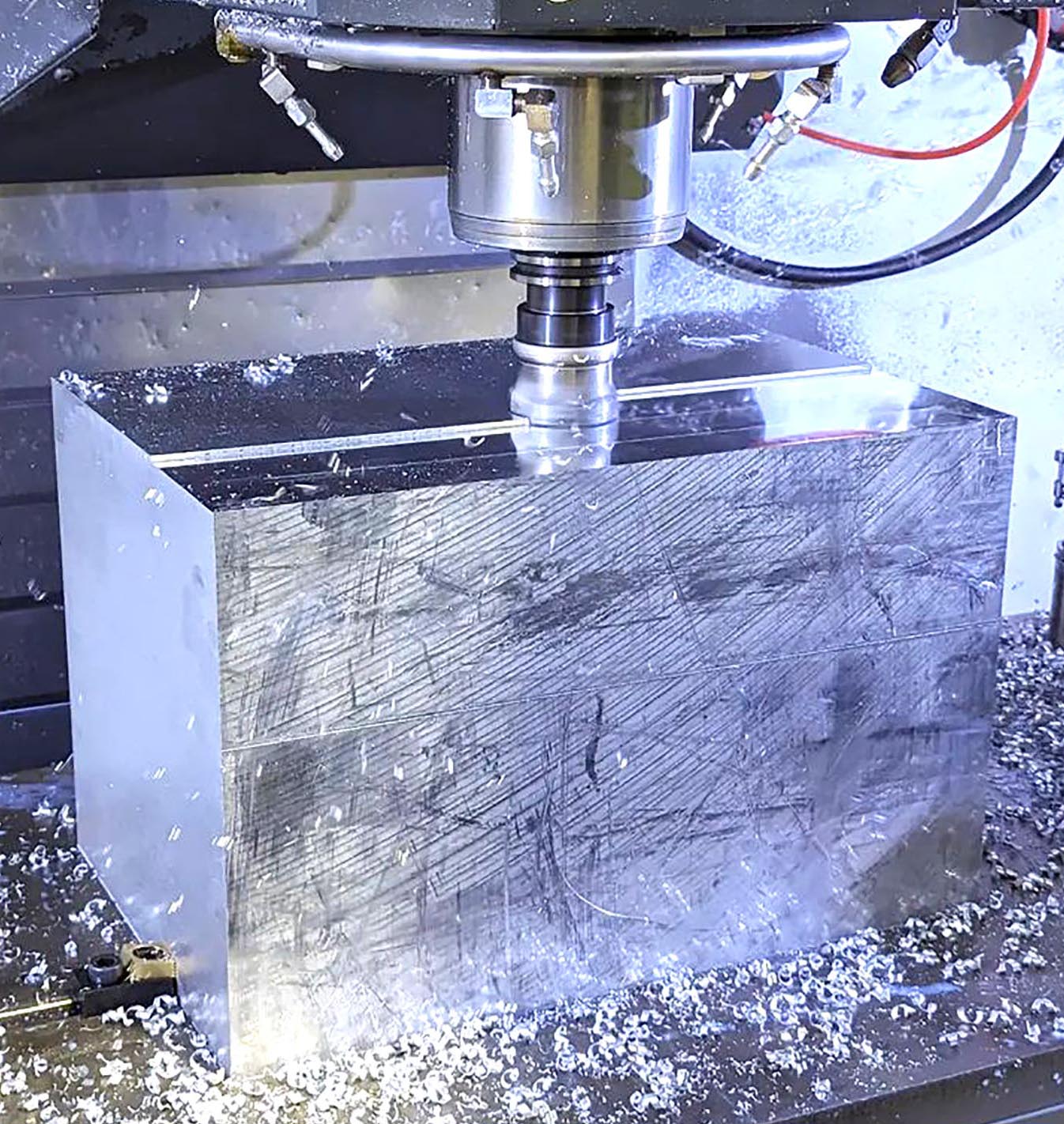

This clamp is similar the Compact Toe Clamp, only it is designed to be used in the T-slots of machine tables. It provides 17800 N positive down force while maintaining a low profile. The hardened steel clamping element has both a smooth surface for machined workpieces and a serrated clamping surface for rougher work. If less clamping force is required, have a look at the T-Slot Clamps
Metric
| A | B | C | D | E | F1 | F2 | G (Neutral Position) |
Torque not to Exceed (N.m.) |
Holding Force (N.) |
Repl. Cam Screw |
Repl. Washer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 28.5 | 15.7 | 25.4 | 9.6 | 25.4 | 22.2 | 37.59 | 88.00 | 17800 | 50372 | 51016 |
F1 – The distance from the top of the back of the washer to the bottom of the clamp body.
F2 – The distance from the top of the front of the washer to the bottom of the clamp body. Torque mounting bolt to 150N.m.
