Haimer Universal 3D‑Sensor Integrated BT40 Product Information

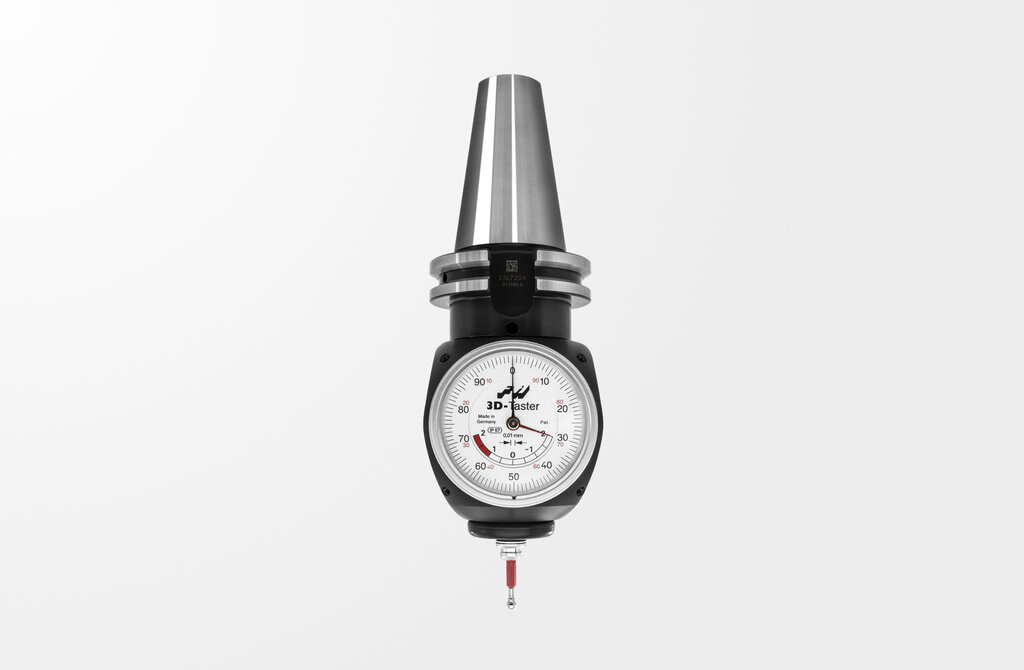

The Haimer Universal 3D‑Sensor with integrated BT40 taper is a highly precise and robust measuring instrument designed for milling and EDM machines. Built for intuitive edge-finding and workpiece alignment, this model features an integrated BT40 shank for direct spindle compatibility, minimising setup time and improving repeatability.
Unlike traditional edge-finders, the Universal 3D‑Sensor allows measurements in all three axes (X, Y, and Z), enabling exact spindle positioning with no manual calculation required. When the needle reaches zero, the spindle is aligned perfectly with the workpiece edge. This eliminates the need to account for the probe ball diameter, just zero it out and go.

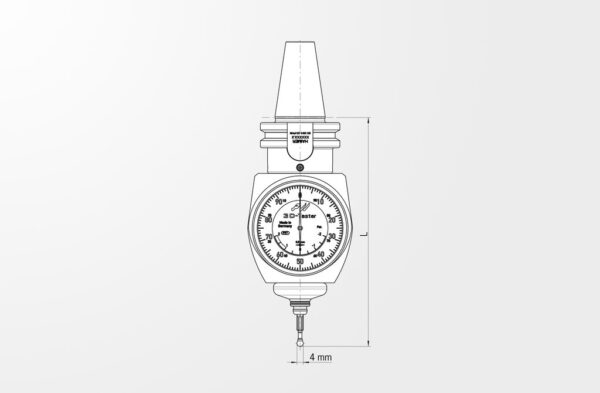

The included short probe tip (Ø 4 mm) uses a ceramic stem to protect the device against collision damage. For deeper or recessed measurements, the long probe tip is also available as an accessory.
For users seeking digital readout functionality, the digital version of the 3D-Sensor with BT40 integration offers the same mechanical excellence with enhanced electronic display features.
Each unit is individually calibrated by Haimer in Germany, IP67-rated for coolant protection, and tested for precision before leaving the factory. Vertech is an authorised distributor of Haimer products in South Africa, ensuring you receive only genuine equipment backed by full support.
For more information on Haimer’s full product range and quality standards, visit the official Haimer website.
Scope of Delivery
Scope of Delivery
- Haimer Universal 3D‑Sensor with integrated BT40 taper
- Short Ø 4 mm ceramic probe tip (pre-installed)
Haimer Tip
Note: The specified measuring precision of 0.01 mm applies only when using original Haimer probe tips.
